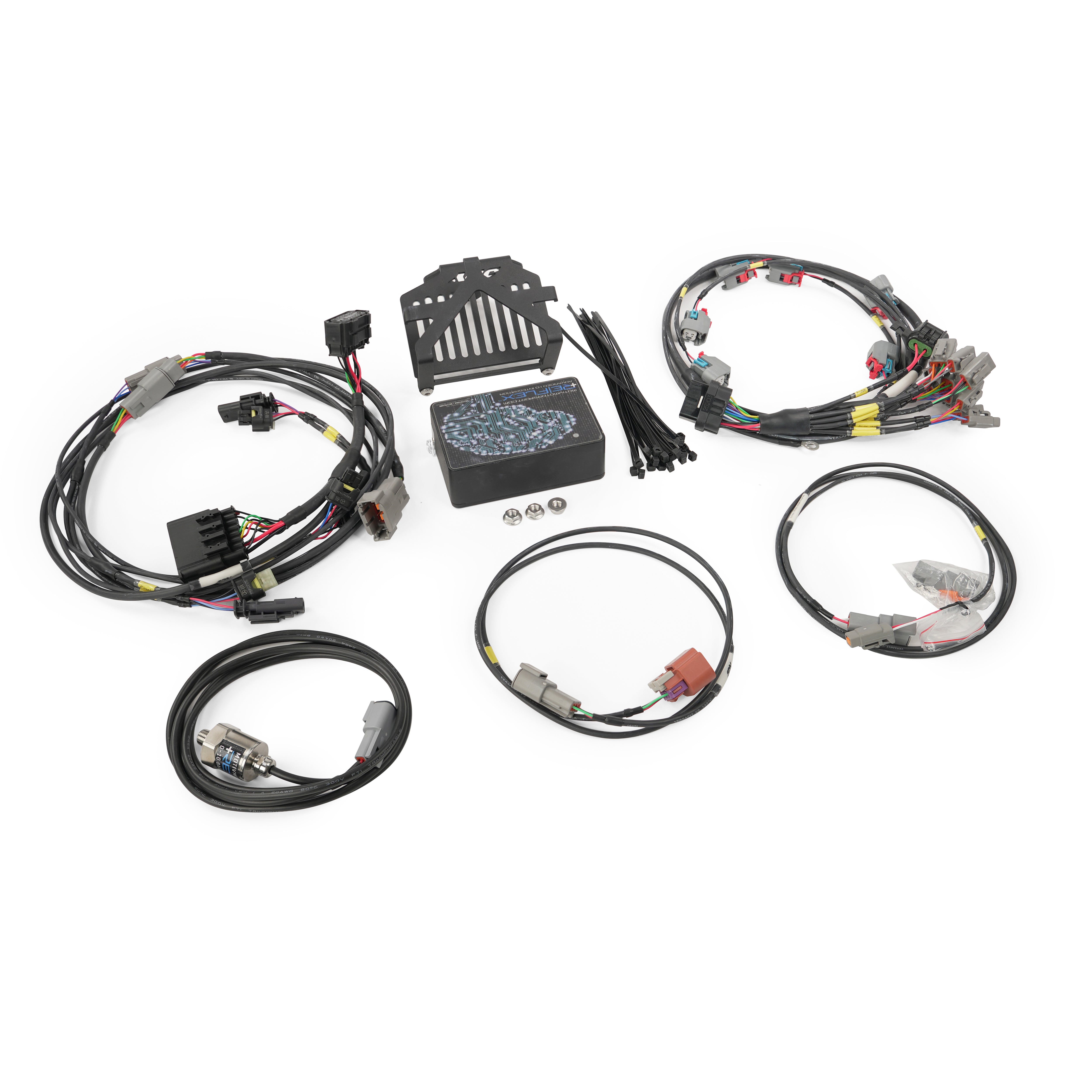

MOTIVE Reflex X58 JDY Ultimate Kit

Description

The JDY Performance MOTIV ReFlex+ Plug & Play Harness Kit is engineered to provide a clean, professional-grade ReFlex integration solution for BMW S58 and B58 platforms for additional port injection control . Designed with true motorsport standards in mind, this harness system utilizes high-end materials, Mil-Spec race harness construction methods, and OEM-style plug & play integration to deliver reliability in both street and race applications. This kit allows seamless ReFlex installation without cutting, modifying, or damaging the factory vehicle harness. Key Features Mil-Spec Motorsport Construction • All wiring utilizes Teflon-coated tin-plated wire for superior heat resistance, durability, and chemical protection • Manufactured using Mil-Spec race harness standards commonly found in professional motorsport applications • Designed for long-term reliability under high heat and vibration conditions Premium Motorsport Connectors • All connectors utilize genuine TE Connectivity DTM series connectors • Every connector includes yellow identification labeling for simplified installation and serviceability True Plug & Play Design • No cutting, splicing, or modification required • Direct plug & play installation • OEM-style integration for a clean engine bay appearance ReFlex Official Wiring Layout • All circuits and reserved connectors are designed based on the official MOTIV ReFlex wiring schematic • Minor wire color differences may exist depending on production revisions • Reserved connectors allow future expansion and customization Expandable System Design • Reserved connectors can be customized by the customer based on vehicle requirements • Additional custom sub-harnesses may require DIY wiring integration • JDY Performance plans to release additional plug-in sub-harness options based on market demand and customer feedback Available Variants Base Kit Includes: • MOTIV ReFlex+ Control Module • Plug & Play Main Harness • Injector Harness • ReFlex Mounting Bracket • Installation Hardware & Zip Ties • 0-10 Bar Fuel pressure sensor Optional Add-Ons Users can configure the kit with the following optional harnesses and accessories: Ethanol Sensor Harness • DTM 3-Pin Ethanol Sensor Harness MAC Valve Harness • DTM 2-Pin MAC Solenoid Harness • Includes matching 2-Pin male connector for MAC valve integration Installation PNP harness • Power harness • Crankshaft sensor harness • Camshaft sensor harness • MAP sensor harness Multiple options can be selected together depending on the vehicle setup and tuning requirements. Included Components ReFlex Mounting Bracket • Metal construction • Black powder-coated finish • Certain applications may require supplied anti-vibration foam tape in specific mounting areas • Some vehicle applications may have different bracket compatibility depending on chassis layout Main Injector Harness • Designed for inline 6-cylinder engines • Compatible with EV6 / USCAR injector connectors • Intended for manifold port injection systems USCAR is an automotive connector standard widely used across the industry, standardizing mechanical and electrical specifications for injectors and sensors. Installation PNP harness • Direct integration with vehicle and ReFlex system • No modification required Optional Auxiliary Harnesses • DTM 3-Pin Ethanol Sensor Harness • DTM 2-Pin MAC Valve Harness • Fuel Pressure Sensor Harness BMW M Models • BMW M3 G80 2020–2024 • BMW M3 Touring G81 2022–2024 • BMW M4 G82 2020–2024 • BMW M4 Convertible G83 2021–2024 • BMW M2 G87 2023–2024 • BMW X3M F97 2019–2024 • BMW X4M F98 2019–2024 BMW 2 Series • BMW M240i G42 2022–2024 (B58 TU1) BMW 3 & 4 Series • BMW M340i G20/G28 2019–2024 • BMW M440i G22/G23/G26 2020–2024 Toyota • Toyota GR Supra A90/A91 3.0 2019–2024

Specifications
