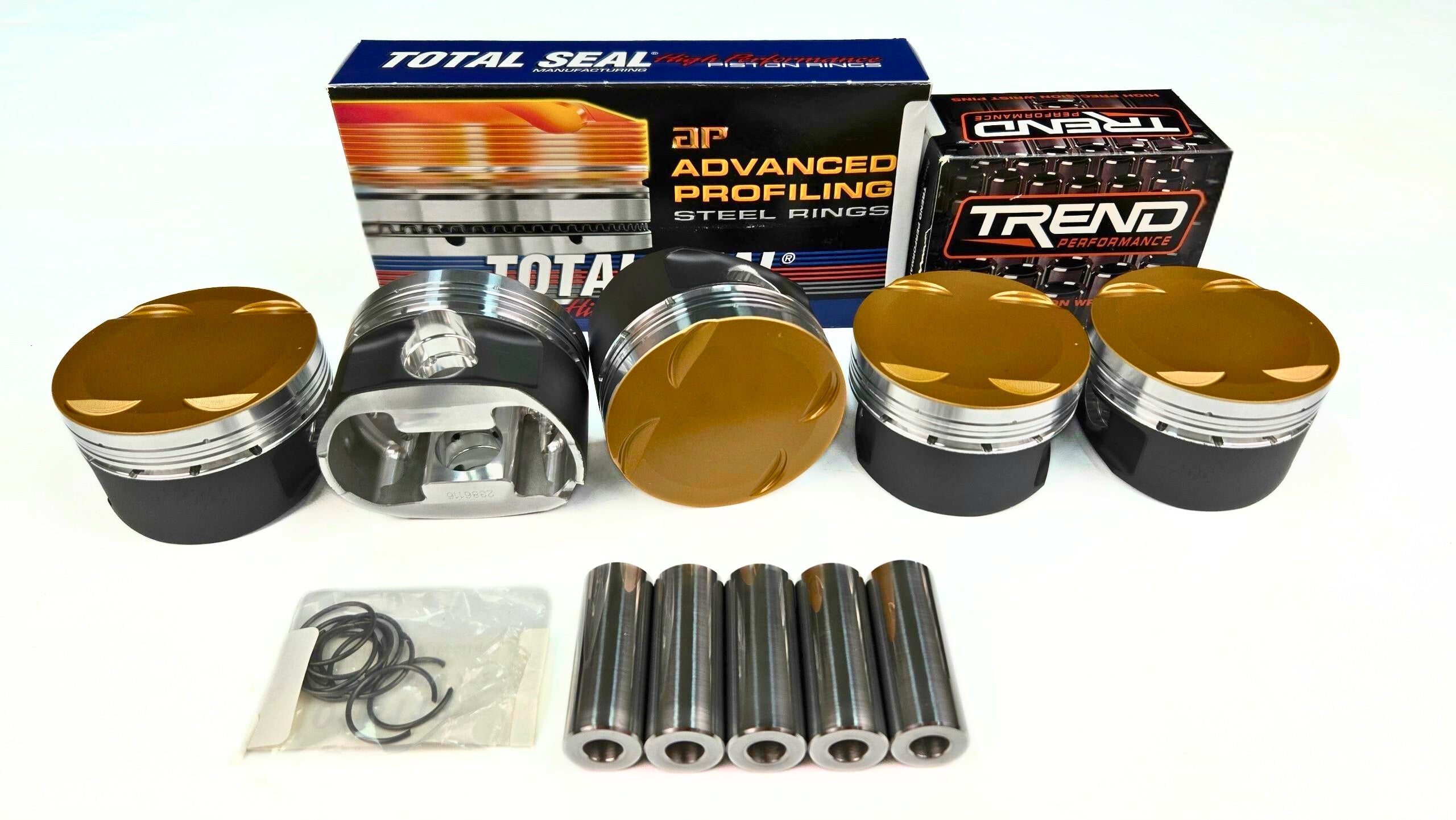

JDY Spec Diamond Forged Pistons Audi 2.5 TFSI RS3 / TTRS 10.0:1 82.50mm (H13 22mm Pin)

Description

JDY Spec Diamond ? Audi 2.5L TFSI TT-RS pistons are made by Diamond Racing USA. They are built as tough as can be to withstand the vigorous demands of racing. No matter how much boost pressure you are running or how high you are revving, these pistons will take it and ask for more! Check the individual features for your application below. SPEC Bore:82.5MM PIN:22mm COMP H:1.165 WEIGHT:298 skirt coating? Crown ceramic coating Product Features and Design • 2618 Low-silicon / High expansion alloy for High HP/Boost applications • Round skirt design with bottom reinforcing band • 3D under crown milling to ensure minimal weight without compromising strength. • 3D milling on piston crowns for ready to install finish • Over size valve pockets for larger than stock valves and clip cuts on the edge of the pistons • Window milling, reduce piston overall weight while maintaining its strength and structural integrity • Lateral gas ports for better ring seal • Offset pins for quiet operation • Molly Skirt coating for friction minimization and skirt wear protection • Premium 8620 series pins from 1018 mild steel ?Tool steel H-13 alloy wrist pins .Part number H8662250225C Extra wall thick. 5.72mm. Diamond Pistons Diamond pistons are engineered with only one thing in mind: Winning races! They are manufactured in the USA from 2618 material. Diamond racing company is known from the late 60s to produce the highest quality engine parts around. The past 2 decades Diamond has solely dedicated itself to manufacturing forged pistons. With all state of the art machinery they offer customers the state of the industry in machining. The Coordinate Measuring Machine (CMM) is one of several sophisticated pieces of measuring and modeling apparatus used in Diamond¡¯s engineering department. The CMM provides very accurate measurements, measuring the location and details of valve pockets, for example, to within a .0001in. This laser scanner is used for modeling purposes, especially for scanning piston domes where it scans thousands of surface points in minutes. Developing the highest quality pistons in the industry by using the latest CNC machinery and computer software aids, as well as providing unmatched quality control. With these credentials it was only a matter of time before we decide that this is the firm to work with for making unlimited horsepower! - Total seal piston rings included? Lowered Piston rings . • Reduces Heat Transfer to the Rings • ?Minimizes Ring Flutter at High RPM • ?Improves Detonation Resistance • ?Stronger Piston Crown

Specifications
