IE Forged Connecting Rods 144X22 VW & Audi 2.0T TSI | Fits VW MK5, MK6, MK7/MK7.5 & Audi B8, C7, 8P, 8J, 8V, 8S

Description

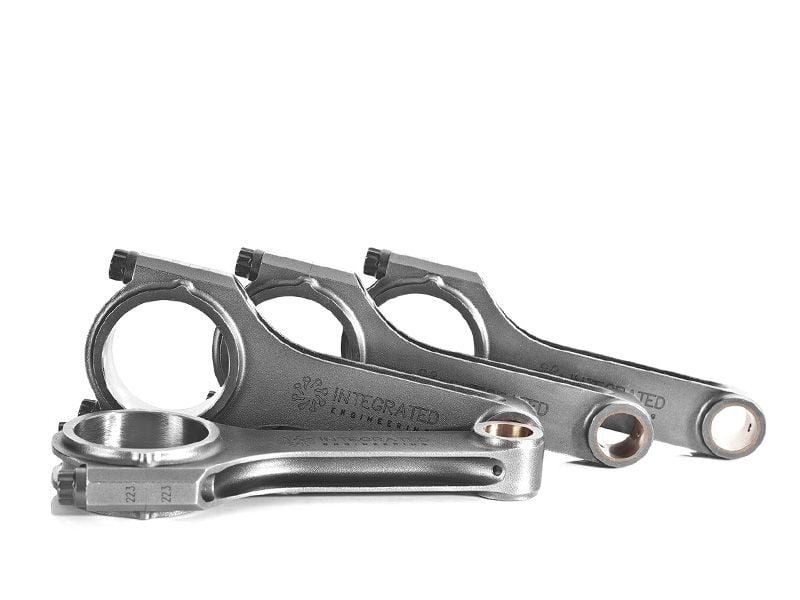

OVERVIEW When increasing the power output of your EA888 2.0T Gen 1, 2, or 3 engine, internal parts begin to fail as they are pushed far beyond their original factory spec limits. Integrated Engineering Forged Connecting Rods are designed to replace the factory units and take the beating from today's high-output power modifications. Drive fast and reliably with IE performance rods, guaranteed to support 700HP! TECHNICAL DIMENSIONS CENTER TO CENTER: 144mm WRIST PIN DIAMETER: 22mm BIG END JOURNAL WIDTH: 21.90mm WRIST PIN STYLE: Non-tapered BIG END JOURNAL DIAMETER: 50.60mm AVERAGE ROD WEIGHT (WITH BOLTS): 565 grams ROD BOLT DIMENSIONS: 3/8" x 1.5" UHL ADDITIONAL FEATURES H BEAM DESIGN The H-beam design is the workhorse of our connecting rod product line. This design features strength, durability, stiffness, and rigidity. IE H-beam Connecting Rods are a great upgrade over weaker factory units. COMPUTER OPTIMIZED All IE rods are designed specifically for the application using relevant cylinder pressure and other application-specific factors. We put our vast European engine knowledge to use when designing each application. RIFLE DRILLING Also referred to as Forced Pin Oiling (FPO), rifle drilling increases wrist pin longevity by providing additional lubrication. This upgrade is highly recommended for street-driven cars that see mileage put on them. Rifle drilling is sold separately on this application. HONED IN-HOUSE Honing the connecting rod big end in-house on state of the art equipment ensures the tolerances are set correctly to ensure proper bearing operation. Lesser quality rods are often not honed with the same attention to detail. MATERIAL FORGED 4340 Made from strong and durable 2 piece 4340 forgings these rods will withstand almost everything you can throw at them. IE/ARP ROD BOLTS All IE rods come standard with ARP 2000 rod bolts. The rod bolts included in every set of IE rods are stamped with the letters "IE" as a way to ensure you have a genuine set of IE rods. INCLUDED ARP 2000 ROD BOLT TORQUE SPECS *The following torque spec is for the included ARP 2000 3/8" rod bolts using the included ARP assembly lubricant only. Do not follow this guide using ARP +625, other assembly lubricants, or alternative bolts. STRETCH GAUGE The preferred method of measuring bolt load is with a stretch bolt gauge. The included ARP 2000 bolts need to be tightened and measured to .006” of stretch using the included ARP assembly lubricant. TORQUE WRENCH When using a high-quality torque wrench, first verify the torque wrench has not been dropped and is properly calibrated. A un-calibrated torque wrench can lead to under/over torque and rod bolt failure. Torque each rod bolt to a final torque of 50 ft/lbs. We recommend torquing the bolt, breaking it loose, and re-torquing the bolt 3 times per bolt. This ensures proper rod bolt stretch and that the rod cap is fully seated. Do not exceed 50 ft/lbs. This torque spec is based off the included ARP assembly lubricant. TECHNICAL DETAILS Connecting rods are some of the highest stressed components in an engine and thus require extreme attention to detail to ensure proper operation and reliability. Integrated Engineering ensures the success of your next engine build by putting each set of connecting rods through a rigorous quality control process. For years Integrated Engineering H-beam Rods have been an integral part of delivering the power that the highest powered turbo setups and race engines demand. Extra attention has been paid to even the smallest details such as the bearing tangs, wrist pin fit, and big end side clearance, providing a level of fit and finish not found anywhere else. Each and every set is finish machined and honed in-house for perfectly round and on size big-end bores, resulting in the industry's lowest failure rates. All rods in this series feature generous wrist pin oiling and optional rifle drilling. One of the hallmarks of a high quality connecting rod is its strength to weight ratio. In order to create this balance of strength and lightweight, our optimized H beam design is utilized and validated using modern CAD drafting and FEA analysis techniques. These techniques ensure the rod is as light and strong as possible, perfect for today's powerful and high rpm European applications. VW & Audi - 2.0T TSI EA888 Gen 1/2 Engines VW - GTI 2006-2009 (MK5) 2.0T TSI EA888 Gen 1 & 2 engines* VW - GTI 2010-2014 (MK6) 2.0T TSI EA888 Gen 1 & 2 engines VW - Jetta & Jetta GLI 2008-2010 (MK5) 2.0T TSI EA888 Gen 1 & 2 engines* VW - Jetta & Jetta GLI 2010-2014 (MK6) 2.0T TSI EA888 Gen 1 & 2 engines VW - Jetta SportWagen 2011-2014 (MK6) 2.0T TSI EA888 Gen 1 & 2 engines VW - CC 2009-2015 (3C8) 2.0T TSI EA888 Gen 1 & 2 engines VW - Passat 2006-2010 (B6) 2.0T TSI EA888 Gen 1 & 2 engines* Audi - A4 2009-2015 (B8 - B8.5) 2.0T TSI EA888 Gen 1 & 2 engines Audi - A4 Allroad 2009-2015 (B8 - B8.5) 2.0T TSI EA888 Gen 1 & 2 engines Audi - A5 2008-2015 (B8 - B8.5) 2.0T TSI EA888 Gen 1 & 2 engines Audi - A6 2012-2015 (C7 - C7.5) 2.0T TSI EA888 Gen 1 & 2 engines Audi - TT 2008-2015 (MK2 - 8J) 2.0T TSI EA888 Gen 1 & 2 engines* Audi - A3 2006-2013 (MK2 - 8P) 2.0T TSI EA888 Gen 1 & 2 engines* VW & Audi - 2.0T TSI EA888 Gen 3 Engines (MQB) VW - GTI 2015+ (MK7 & MK7.5) 2.0T TSI EA888 Gen 3 engines VW - Golf R (MK7 & MK7.5) 2.0T TSI EA888 Gen 3 engines AUDI - A3 2015+ (8V / MK3) TSI EA888 Gen 3 engines AUDI - S3 2015+ (8V / MK3) TSI EA888 Gen 3 engines AUDI - TT 2015+ (8S / MK3) TSI EA888 Gen 3 engines AUDI - TTS 2015+ (8S / MK3) TSI EA888 Gen 3 engines Previous revisions: IERHVN1
