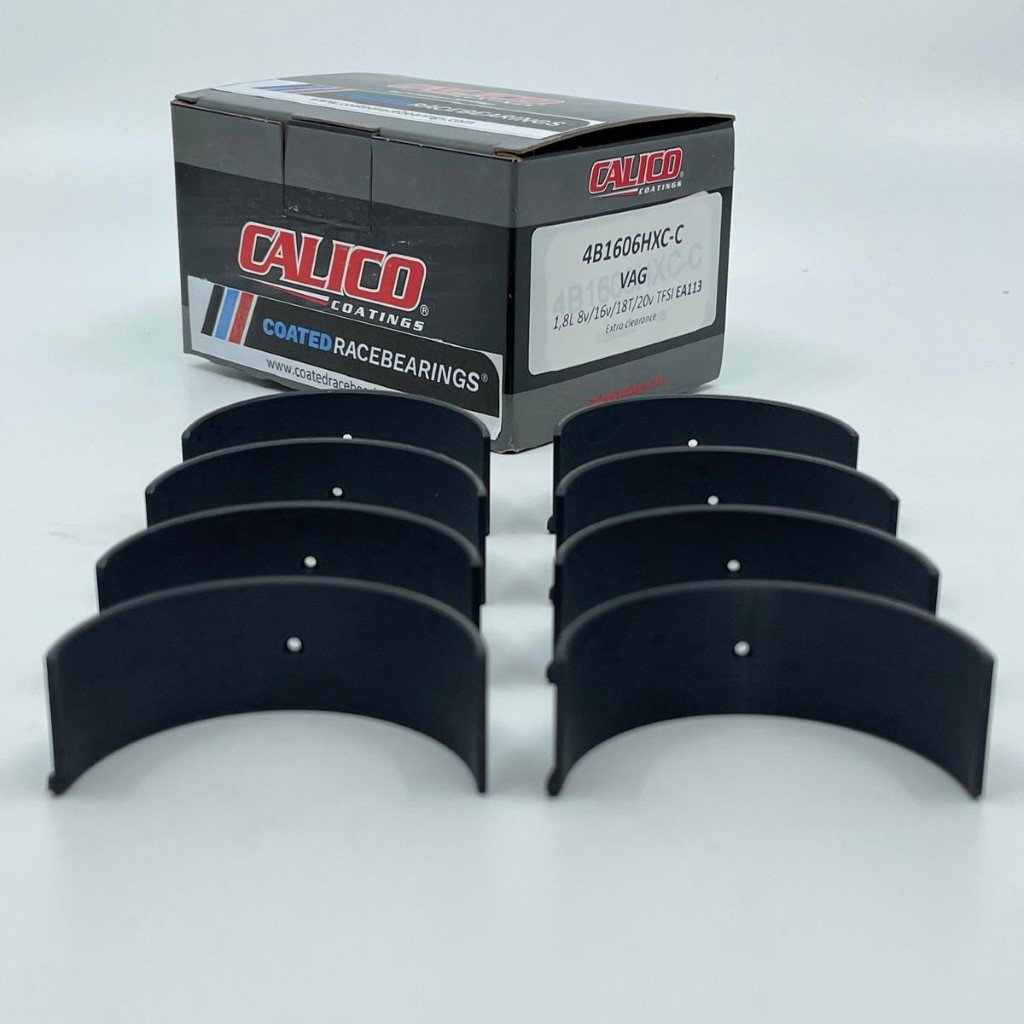

Audi / VW 1.8L 8v/16v/18T/20v TFSI EA113 Gen1 (with notch) rod bearing set ACL race Calico CT-1 coated 4B1606HXC-C HX-serie with 0.025mm (0.001¡±) extra clearance

Description

Cylinders ? ?Inline 4 Motorcode ? ?#For all EA133 TFSI/TSI Gen 1 engines, ADR, AEB, AGN, AGU, AJH, AJQ, ALT, AMB, AMK, APG, APP, APT, APU, APX, APY, AQA, AQE, ARG, ARH, ARK, ARX, ARY, ARZ, AUL, AUM, AUQ, AVJ, AVV, AWA, AWT, AXW, AXX, BAM, BEX, BFB, BFV, BGB, BMB, BUL, BWA, BWE, KR, PL Motorinhoud ? ?1.6L, 1.8L, 2.0L Half type ? ?Identical halves Model ? ?80 B3, 80 B4, 80CC, A4 B5, Cordoba, Fox, Golf A3 (Mk3), Golf Cabriolet A1 (Mk1), Golf Cabriolet A3 (Mk3), Ibiza, Passat B5, Transporter T4 Material ? ?F781 Max overall Length ? ?19 mm / 0.7480 in Max. wall at crown ? ?1, 392 mm / 0.0548 in Min. Std. Shaft size ? ?47, 758 mm / 1.8802 in Max. Std. Shaft size ? ?47, 778 mm / 1.8810 in Min. Std tunnel size ? ?50, 6 mm / 1.9921 in Max. Std. Tunnel size ? ?50, 619 mm / 1.9929 in

Specifications
